Home/Industrial 50-2000kg/H Dog Pet Fish Floating Feed Machine

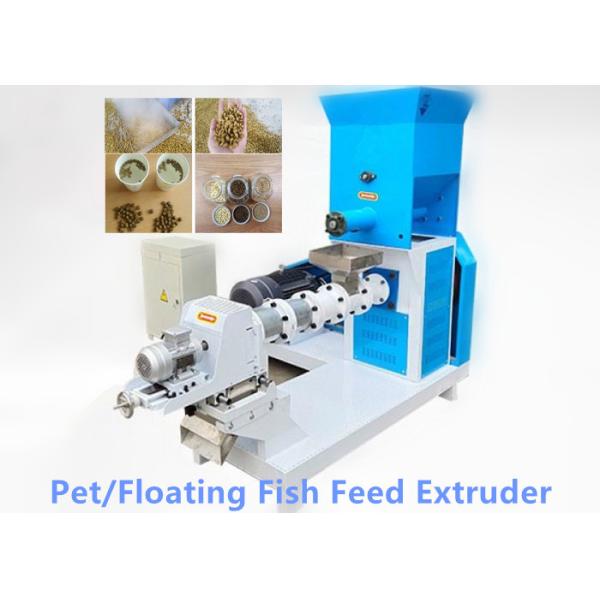

Introduction for This Dry Type Dog Pet Fish Floating Feed Machine:
This series dry type dog pet fish floating feed machine has built-in screw and lengthened screw sleeve, material rotary cutting time is long, temperature can be adjusted, output torque can be adjusted, so that the product has high expansion degree and smooth surface.
This series dry type dog pet fish floating feed machine can make different feed pellets such as: floating aquatic feed pellets, fish feed pellets, shrimp and crab feed pellets, dog, pet feed pellets etc.
Main Parameters of This series dry type dog pet fish floating feed machine:
| Model No. | Capacity (t/h) | Power
(kw) | Feeding power
kw | Screw Dia.
(mm) | Cutting Power
(kw) | weight
(kg) | product size
(mm) |
| DGP40-C | 0.03-0.04 | 5.5 | 0.4 | φ40 | 0.4 | 260 | 1400*1030*1200 |
| DGP50-C | 0.06-0.08 | 11 | 0.4 | φ50 | 0.4 | 350 | 1450*1080*1250 |
| DGP60-B | 0.12-0.15 | 15 | 0.4 | φ60 | 0.4 | 355 | 1460*1100*1250 |
| DGP70-B | 0.18-0.25 | 18.5 | 0.4 | φ70 | 0.4 | 580 | 1600*1400*1350 |
| DGP80-B | 0.3-0.35 | 22-27 | 0.4 | φ80 | 1.1 | 700 | 1800*1450*1350 |
| DGP90-B | 0.4-0.45 | 32 | 0.4 | φ90 | 1.5 | 950 | 2100*1450*1350 |
| DGP100-B | 0.5 | 37 | 0.75 | | 1.5 | | |
| DGP120-B | 0.5-0.7 | 55 | 0.4 | φ120 | 2.2 | 1700 | 2400*1950*1600 |
| DGP135-B | 0.8-1.0 | 75 | 0.4 | φ133 | 2.2 | 1900 | 2550*2050*1650 |
| DGP160-B | 1.2-1.5 | 90 | 1.5 | φ155 | 2.2 | 3600 | 2900*2650*1800 |
| DGP200-B | 1.8-2.0 | 132 | 2.2 | φ195 | 3 | 4300 | 3000*2850*1900 |
Structure&Features of This series dry type dog pet fish floating feed machine:
1. This series dry type dog pet fish floating feed machine has international advanced cutting structure and adopts soft knife laminating form to realize stepless speed change. The pet floating fish feed dog food pellet making machine can cut the discharged material into required length products at will, and it is not easy to produce burr.
2.The pet floating fish feed dog food pellet making machine’s design is novel, unique, simple in structure, easy to install, easy to disassemble and easy to operate.
3.The screw sleeve and screw are made of special wear-resistant and high-temperature alloy steel and heat-treated, which have the advantages of wear resistance and long service life.
4. Unique pressure increasing die device is set inside to ensure feed output and quality, and electric heating device is equipped to improve feed expansion rate.
5. The main motor of this pet floating fish feed dog food pellet making machine adopts high-quality Y Series two-phase and three-phase motors to ensure strong power.
6. Speed control feeding device, more convenient to operate, feed evenly, prevent suffocation.
Application of This series dry type dog pet fish floating feed machine:
